SEMI-MOUNTED PLOUGH

Ovlac reversible Semi-Mounted Ploughs are available for tractors up to 450hp.
Available in shearbolt or hydraulic reset protection systems with hydraulic vari-width furrow adjustment.

ENQUIRE

FEATURES AND BENEFITS

In order to take different working conditions into account, Ovlac Semi-Mounted ploughs can be equipped with two alternative protection systems.

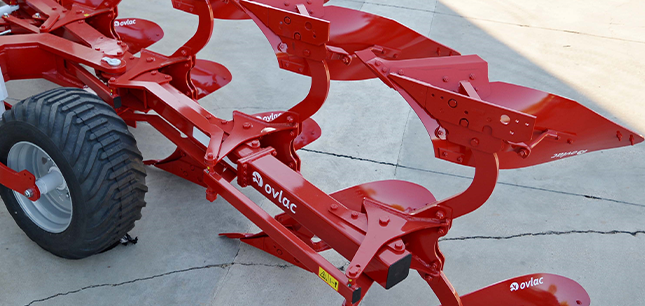

SHEARBOLT

The simplest of the two systems. The shearbolt thickness, steel grade and position are calculated so it breaks under a pressure of approx. 2400kg exerted at the plough point. It is imperative that broken shearbolts are replaced with genuine Ovlac bolts. Non-genuine shearbolts with a different dimension or steel grades can result in serious damage to the plough.

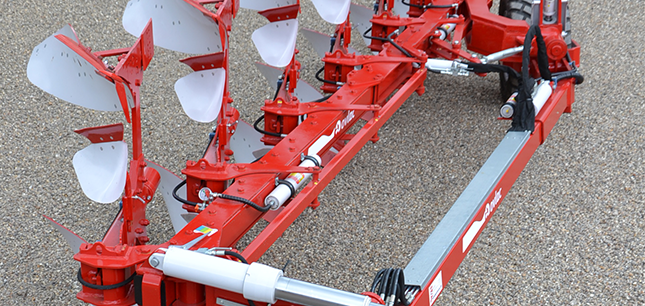

HYDRAULIC RESET

A regulated trip mechanism. This system allows adaptation of release pressure according to soil
conditions. In heavy or compacted soil, pressure can be increased in order to guarantee penetration and maintain an optimal working position of the bodies. On the contrary, in stony conditions pressure can be set lower to prevent stones being brought to the surface.



OSCILLATING CROSS SHAFT - AUTOMATIC SELF-ALIGNMENT

Ovlac ploughs are equipped with an Oscillating Cross Shaft with a centre pivot. The plough is pulled from the centre pivot point which ensures it can move independently to follow the tractor and find the perfect balance between the side pressure exerted on the mouldboard and the landslide.

Therefore once the plough is set correctly it is not necessary to make complicated adjustments in order to ensure the plough pulls straight. In work the plough will follow the tractor perfectly.

When lifting the plough for transport or turn over, the Oscillating Cross Shaft automatically locks itself in the central position.

The cross shaft movement also makes it very easy to hitch up to the plough. In addition to the operational benefits the Oscillating Cross Shaft significantly reduces strain on the whole plough and fuel usage.



SEMI-MOUNTED PLOUGH MODELS

Ovlac reversible Semi-Mounted Ploughs are available for tractors
up to 450hp. The SLF series are shearbolt protected with manual
furrow width adjustment.

• Manual furrow width adjustment of 14”, 16”, 19” and 21” (35, 40, 48 and 53cm)
• Hydraulic front furrow width
• In furrow as standard
• Optional on-land or in-furrow with same plough

Standard equipment:

• V34 mouldboards standard
• 78cm underbeam clearance
• 105cm interbody clearance

Technical Specification

Model No. Description Furrows HP
23SLF5-95-E SLF 5 EXT 5 Extendable 450hp
23SLF6-95-E SLF 6 EXT 6 Extendable 450hp
23SLF7-95-E SLF 7 EXT 7 Extendable 450hp
23SLF8-95-E SLF 8 EXT 8 Extendable 450hp

Many options and extras available

Ovlac reversible Semi-Mounted Ploughs are available for
tractors up to 450hp. The SSF series are shearbolt protected with
hydraulic vari-width furrow adjustment.

• Hydraulic furrow width adjustment from 12” to 21”
(35 to 53cm)
• Hydraulic front furrow width
• In furrow as standard
• Optional on-land or in-furrow with same plough

Standard equipment:

• V34 mouldboards standard
• 78cm underbeam clearance
• 105cm interbody clearance

Technical Specification

Model No. Description Furrows HP
23SSF5-95-E SLF 5 EXT 5 Extendable 450hp
23SSF6-95-E SSF 6 EXT 6 Extendable 450hp
23SSF7-95-E SSF 7 EXT 7 Extendable 450hp
23SSF8-95-E SSF 8 EXT 8 Extendable 450hp

Many options and extras available

Ovlac reversible Semi-Mounted Ploughs are available for tractors
up to 450hp. The SLH features a hydraulic reset protection
system.

• Manual vari-width furrow adjustment from 14”, 16”, 19” and
21” (35, 40 45, and 53cm).
• Hydraulic front furrow width
• In furrow as standard
• Optional on-land or in-furrow with same plough

Standard equipment:

• V34 mouldboards standard
• 78cm underbeam clearance
• 105cm interbody clearance

Technical Specification

Model No. Description Furrows HP
23SLH5-95-E SLH 5 EXT 5 Extendable 450hp
23SLH6-95-E SLH 6 EXT 6 Extendable 450hp
23SLH7-95-E SLH 7 EXT 7 Extendable 450hp

Many options and extras available

Ovlac reversible Semi-Mounted Ploughs are available for tractors
up to 450hp. The SSH series are shearbolt protected with
hydraulic vari-width furrow adjustment.

• Manual furrow width adjustment of 12” to 21” (35 to 53cm)
• Hydraulic front furrow width
• In furrow as standard
• Optional on-land or in-furrow with same plough

Standard equipment:

• V34 mouldboards standard
• 78cm underbeam clearance
• 105cm interbody clearance

Technical Specification

Model No. Description Furrows HP
23SSH5-95-E SSH 5 EXT 5 Extendable 450hp
23SSH6-95-E SSH 6 EXT 6 Extendable 450hp
23SSH7-95-E SSH 7 EXT 7 Extendable 450hp

Many options and extras available

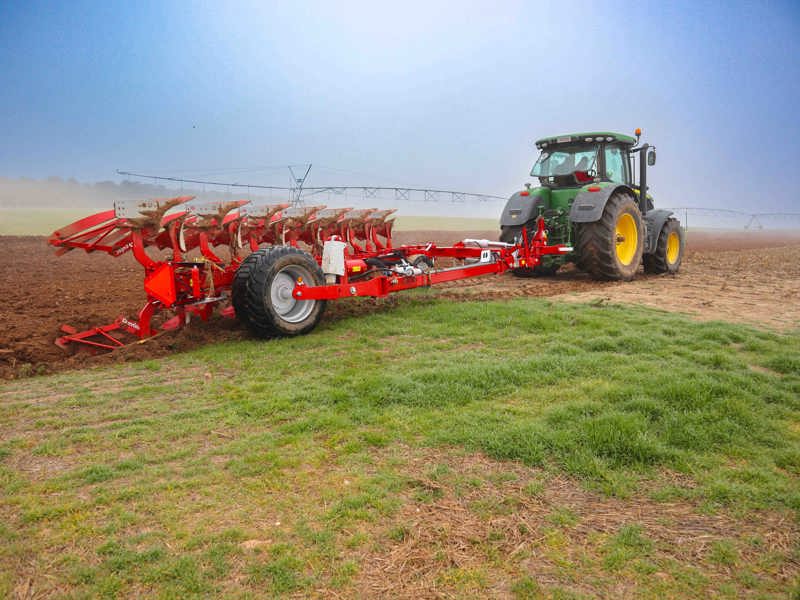

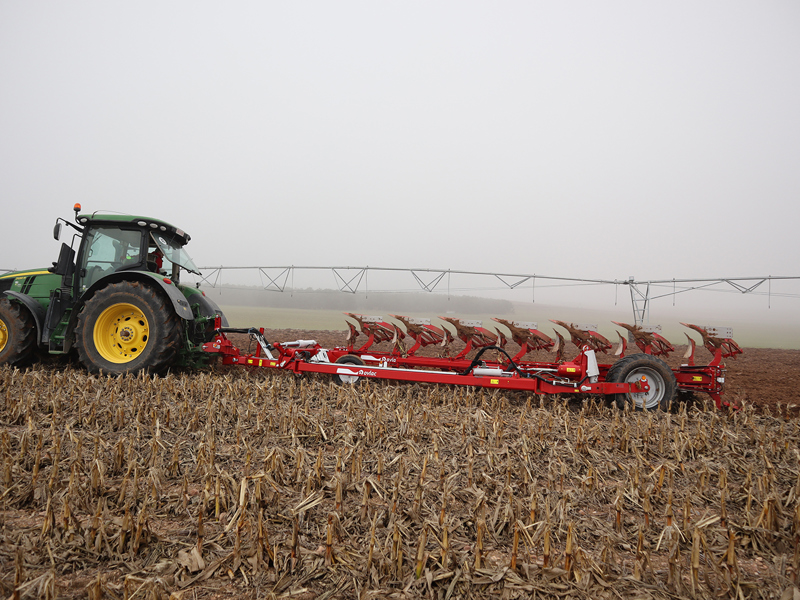

GALLERY
